AIR POWER DRAWBAR

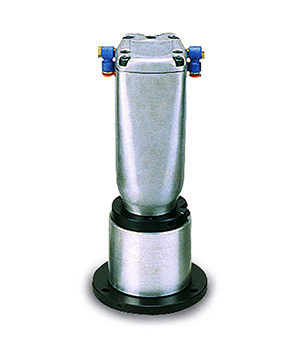

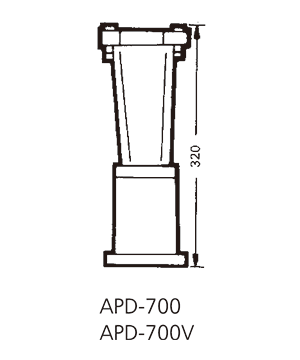

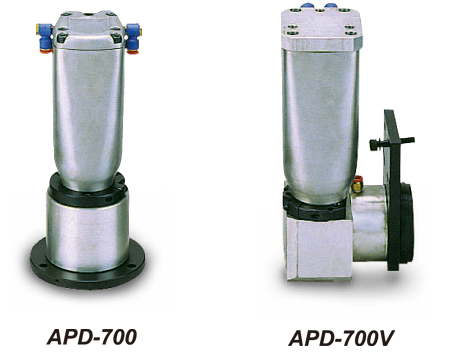

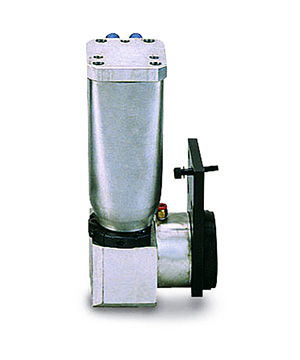

Model No. APD-700 / APD-700V

It will increase you productivity with more profits as cutter replacement needs only 3 sec and the speed of replacement is more than 10 times to compare with traditional cutter replacement.
No need to knock the top end of drawbar for loosing cutter to remain the precision of main spindle and prolong the life of bearing.
Cutter will not rotate if the spindle was located on the neutral position.
It fits to conventional Milling machine, NC Milling machine, plano mill and boring machine.
APD-700 / APD-700V are high torque performance enabling it ideal for heavy machine tools.
Fully air operated it requires no assistance of additional electric driving. It fits to NT50# milling machine.

Model No.	Suit for	Max torque	Running Speed	Air pressure	N.W.	G.W.	Shipment Size	Remarks
APD-700	NT50#	700ft / lbs / 950N-M	5000R.P.M.	90psi~115psi / 6.3kg~8kg/cm²	13.6 kg	15.1 kg	67x42x19 cm	1.89材
APD-700V	NT50#	700ft / lbs / 950N-M	5000R.P.M.	90psi~115psi / 6.3kg~8kg/cm²	13.6 kg	15.1 kg	67x42x19 cm	1.89材
