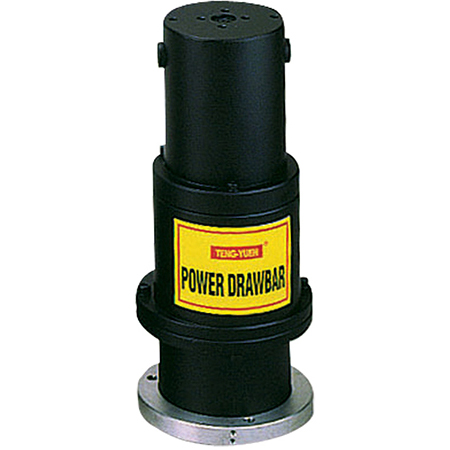

ELECTRIC POWER DRAWBAR

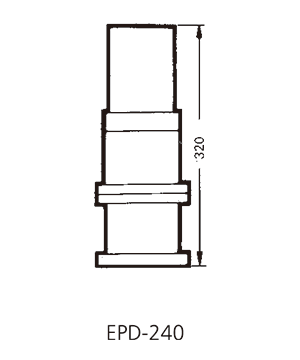

Model No. EPD-240

It will increase you productivity with more profits as cutter replacement needs only 3 sec and the speed of replacement is more than 10 times to compare with traditional cutter replacement.
No need to knock the top end of drawbar for loosing cutter to remain the precision of main spindle and prolong the life of bearing.
Cutter will not rotate if the spindle was located on the neutral position.
It fits to conventional Milling machine, NC Milling machine, plano mill and boring machine.
EPD-240 is double clutch designed to avoid the spindle running.
Fully electric operated. It requires no assistance of additional power.
Tool change may be performed while this power drawbar is set at netural position, and the operator safety is fully guaranteed. It fits to NT#40, NT#50 milling machine.

Model No. Suit for Max torque Running Speed Voltage Amps. N.W. G.W. Shipment Size

EPD-240 NT50#, NT40# 240ft / lbs 2100R.P.M. 220V 50/60HZ 7.5 A 11.2 kg 12.7 kg 67x42x19 cm
