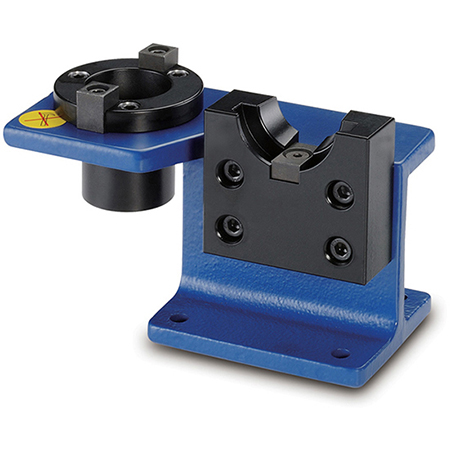

A TYPE (CAST IRON BODY)
Product Description
Model No.
LD-BT30A / LD-BT40A / LD-BT50A / LD-DIN40A / LD-DIN50A / LD-CAT40A / LD-CAT50A
Vertical tool rest : aluminum.
LD-BT30A / LD-BT40A / LD-BT50A / LD-DIN40A / LD-DIN50A / LD-CAT40A / LD-CAT50A
Vertical tool rest : aluminum.
-
Model No. Type L I1 I2 I3 I4 H W N.W. G.W. Shipment Size LD-BT30A BT30 210 95 10 15 67 130 100 3.6 kg 3.7 kg 22x11.5x14 cm LD-BT40A BT40 210 95 10 15 67 130 100 3.7 kg 3.9 kg 22x11.5x14 cm LD-BT50A BT50 275 113 20 24 105 200 150 11 kg 11.4 kg 29.5X17X21 cm LD-DIN40A DIN40 210 95 10 15 67 130 100 3.6 kg 3.8 kg 22x11.5x14 cm LD-DIN50A DIN50 275 113 20 24 105 200 150 10.8 kg 11.2 kg 29.5X17X21 cm LD-CAT40A CAT40 210 95 10 15 67 130 100 3.6 kg 3.8 kg 22x11.5x14 cm LD-CAT50A CAT50 275 113 20 24 105 200 150 10.8 kg 11.2 kg 29.5X17X21 cm -

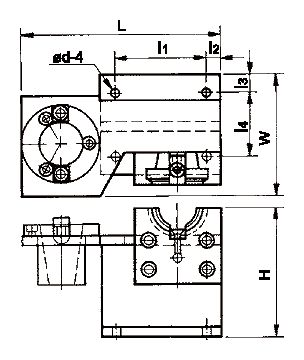

Product Dimension
