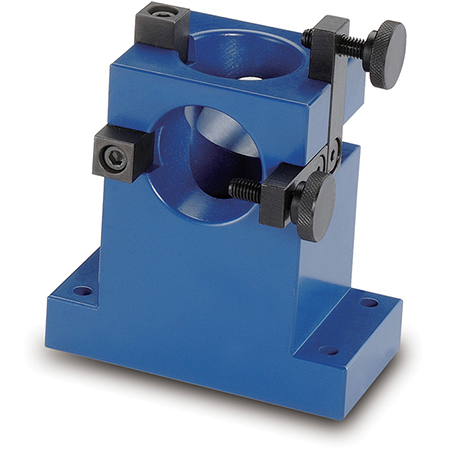

B TYPE (CAST ALUMINUM ALLOY BODY)
Product Description
Model No.
LD-30B / LD-40B / LD-50B
- Vertical and horizontal configuration.
- Applicable to BT, CAT, DIN tapers.
-
Model No. Type L I1 I2 I3 I4 H W N.W. G.W. Shipment Size LD-30B 30 95 65 80 7.5 33 100 58 0.9 kg 1 kg 13x10x16 cm LD-40B 40 118 77 99 9.2 44 130 75 1.6 kg 1.7 kg 13x10x16 cm LD-50B 50 170 92 110 12 53 185 115 5.1 kg 5.4 kg 29.5x17x21 cm -

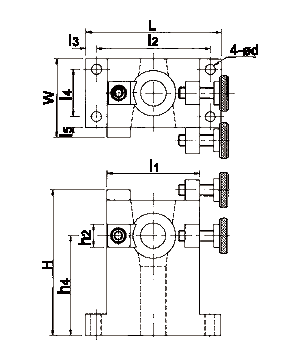

Product Dimension
