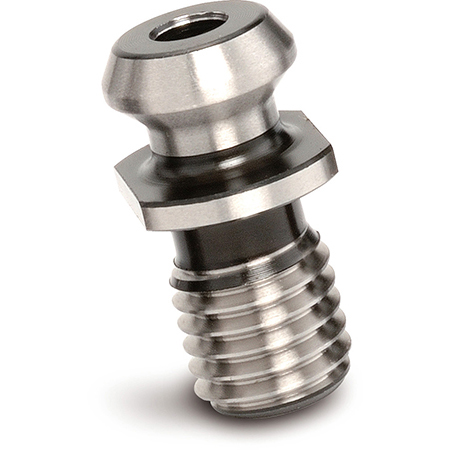

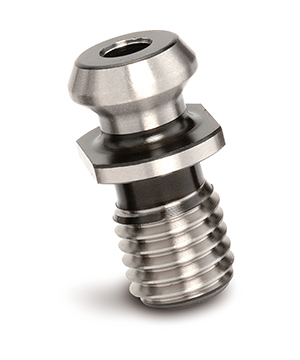

PULL STUD CAT TYPE ( GRINDING THREAD )
Processing instructions
Model No.
PS-CAT40-45°N / PS-CAT50-45°N
PS-CAT40-45°N / PS-CAT50-45°N
-
Model No. TYPE a° L L₁ L₂ D D₁ D₂ D₃ M Weight PS-CAT40-45°N CAT40 45 38.1 16.2 11.2 23.8 18.8 12.4 7.1 5/8" PS-CAT50-45°N CAT50 45 58.4 25.4 17.8 36 28.9 20.8 11.8 1" -

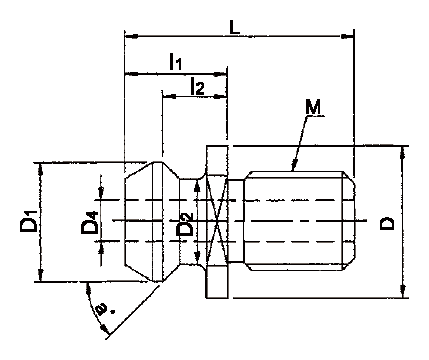

Product Dimension
