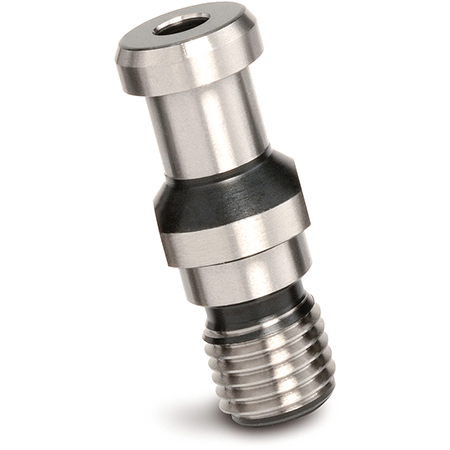

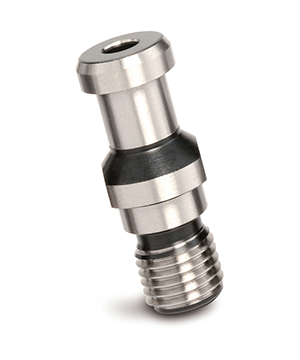

PULL STUD DAT TYPE ( GRINDING THREAD )
Processing instructions
Model No.
PS-DAT30NA / PS-DAT40NA / PS-DAT50NA / PS-DAT30N / PS-DAT40N / PS-DAT50N
PS-DAT30NA / PS-DAT40NA / PS-DAT50NA / PS-DAT30N / PS-DAT40N / PS-DAT50N
-
Model No. TYPE L L₁ L₂ L₃ L₄ D D₁ D₂ D₃ D₄ M Weight PS-DAT30NA DAT30-A 44 24 19 - - 17 13 9 13 - M12 0.03 kg PS-DAT40NA DAT40-A 54 26 20 - - 23 19 14 17 7 M16 0.09 kg PS-DAT50NA DAT50-A 74 34 25 - - 36 28 21 25 11.5 M24 0.25 kg PS-DAT30N DAT30-A 44 24 19 1.4 - 17 13 9 13 - M12 0.03 kg PS-DAT40N DAT40-A 54 26 20 1.9 27 23 19 14 17 7 M16 0.09 kg PS-DAT50N DAT50-A 74 34 25 3 37 36 28 21 25 11.5 M24 0.25 kg -

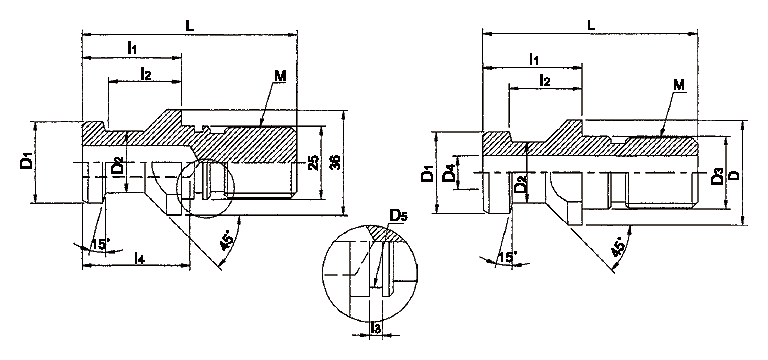

Product Dimension
