TP-4040HEA TYPE
Features
- The tool presetter is suitable for tool measuring for various machine tools, such as CNC vertical machining center, CNC horizontal machining center, machining center, boring machine and milling machine etc. It greatly saves tool setting time.
- Suitable for measuring tool circularity, perpendicularity and insert position.
- Spindles of BT#50, BT#40 and BT#30 are available to change for fitting different specification tools.
- All casting parts of the machine are normalized to ensure deformation free and high accuracy.
-
Model No. Travel Graduation Machine size LxWxH Weight TP-4040HEA D:400 mm, L:400 mm X-axis:0.01 mm, Z-axis:0.01 mm 930x760x1050mm 100kg -
- Electric Digital Scale
- Test bar
- Dial Gauge x 2
- Dust Prevention Cover
- Toolbar is Locked by Pneumatic
-
Model No. Weight Size LxWxH

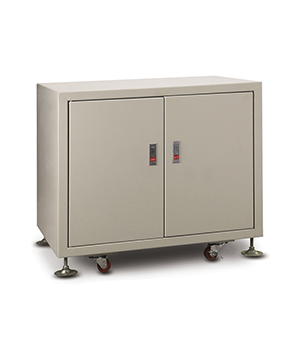

TP-C 42 kg 76x50x60 cm

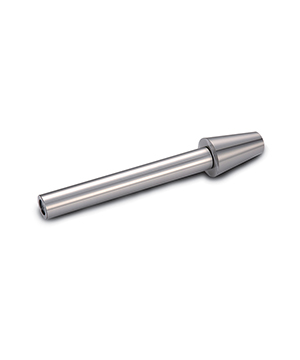

TSB-50-250L 5.4 kg / 4.1 kg 47.5x11x9.5 cm

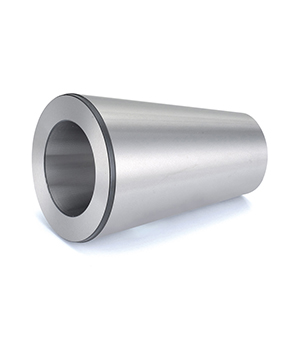

ISO50-TSA40 / ISO50-TSA30 1.7kg -
