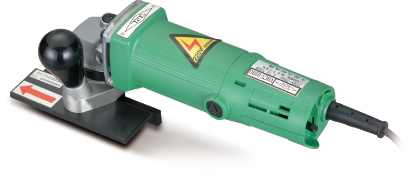

VERTICAL TYPE HAND CHAMFERING TOOL

Model No. VHCT-03HG

Suitable for chamfering angle C,angle R and straight line.
The unit provides chamfering 0~3 m/m.
Suitable for heavy workpiece.Easy operation, convenient and save time.
Suitable for chamfering of large workpieces molds, steels and component's chamfered when proccessing of iron casting.
Suitable for vertical workpiece.

Model No.	Chamfering Capacity	Running Speed	Voltage	N.W.	G.W.	Shipment Size	Inserts Specification	Remarks
VHCT-03HG	0~3 m/m	12000 R. P. M.	220V / 110V	2.5 kg	2.8 kg	36x13.5x12.5 cm	SPMW 090308	Import body
